Superposed Pedestrian Signals

Orange Traffic Pedestrian Signals

Talk to
an expert Download the technical sheet

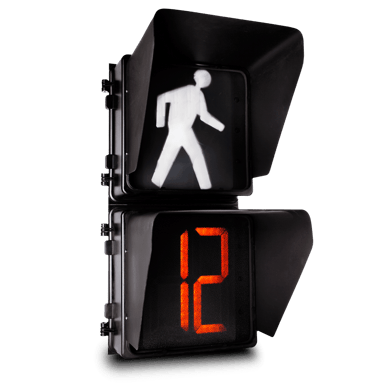

Orange Traffic proposes LED signals comprising two superposed display modules: one module represents a main or silhouette, depending on the situation, whereas the second is a 12-second countdown module.

These signals provide increased visibility and eliminate the risks of signal misinterpretation. Pedestrians thus benefit from increased safety when crossing intersections.

Functional characteristics

Uniformity that complies with ITE’s PTSCI uniformity standard regarding minimum and maximum brightnesses
Full pre-emption compatibility
Compliance with the MUTCD countdown standard
Separate and dedicated power supplies for increased safety and reliability
Intertek/ETL certification and registration with ETL’s certification program

Protection

Anticapillary wiring that prevents water infiltration
Power supplies covered by a damp-proof coating
Fuse providing an increased level of protection against line and charge surge
Protection against transient voltage surges that exceeds NEMA and ITE standards

Technical characteristics

Dimensions: 30.5 x 30.5 cm (12 x 12 in.)
Power supply: 80-135 VAC, 60 ± 3 Hz
Power consumption (at 25°C):
- Main: 8 W
- Silhouette: 6 W
- Countdown: 5 W
Maximum brightness:
- Main: 1400 cd/m2
- Silhouette: 2200 cd/m2
- Countdown: 1400 cd/m2
