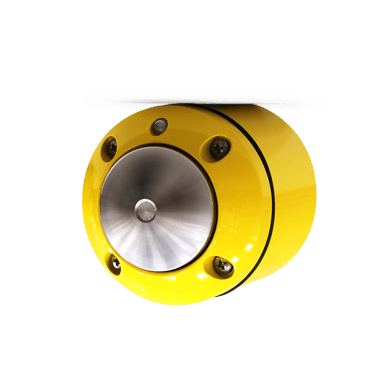

BCU-240 – Pedestrian Push Button BCU-240 – Pedestrian Push Button-2 BCU-240 – Pedestrian Push Button-3 BCU-240 – Pedestrian Push Button-4

The BCU-240 pedestrian push button is extremely reliable. It is designed to be weather resistant and provide advanced functionalities.

The BCU-240 pedestrian push button uses piezoelectric detection and digital signal transmission. It can be configured to memorize each time it is pressed by a pedestrian. Calls are confirmed by a red LED indicator light and a tone; the light stays on until the requested phase is deployed.

The button is fitted with a full neoprene O ring that is guaranteed watertight. It is compliant with the provisions of the Manual on Uniform Traffic Control Devices (MUTCD) in the United States.

The BCU-240 pedestrian push button is covered by a 5-year warranty.

General characteristics

  • 6061-T6 aluminium housing
  • Machined stainless steel or painted aluminium button
  • Stainless steel terminals and connectors
  • IP68-rated protection
  • Yellow painted components

Technical characteristics

  • Power supply voltage: 12 to 24 VDC
  • Operating temperature range: –40 to +125°C (–40 to 257°F)
  • Actuating pressure: 3 to 5 N (2.2 to 3.7 lbf)
  • Expected service life: over 100 million operations
  • Exterior diameter: 76 mm (3″)
